electrical conduit UL797 ANSI C80.3
TIME:2017-05-14

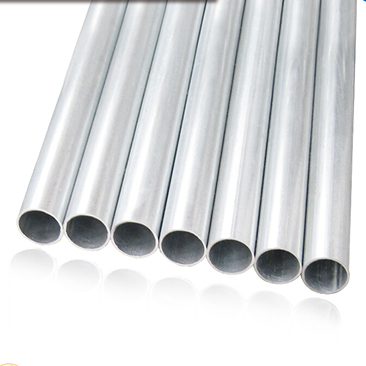

Brief introductionElectrical conduit is processed by high-quality hot dipped galvanized coil, with zinc layer thickness more than 120G / ㎡. It has the following advantages: easily bended, good welded line, clean end, smooth and bright surface. It is the preferred wire pulling material of modern building on.
|
 |
 |
 |
| Product Name: | UL797 ANSI C80.3 electrical conduit |
| Material Grade | Q195,Q235 |
| Surface Finished | Pre galvanized or hot dipped galvanized |
| Standard | UL797 ANSI C80.3 |
| Length | 3.05M or customized length |
| STANDARD EMT CONDUIT | ||||||
| Standard | Nominal Size | Outside Diameter | Wall Thickness | Length | ||
| UL 797 ANSI C 80.3 | inch | inch | mm | mm | feet | mm |
| 1/2″ | 0.706 | 17.93 | 1.07 | 10 | 3050 | |
| 3/4″ | 0.922 | 23.42 | 1.24 | 10 | 3050 | |
| 1″ | 1.163 | 29.54 | 1.45 | 10 | 3050 | |
| 1-1/4″ | 1.510 | 38.35 | 1.65 | 10 | 3050 | |
| 1-1/2″ | 1.740 | 44.20 | 1.65 | 10 | 3050 | |
| 2″ | 2.197 | 55.80 | 1.65 | 10 | 3050 | |
| 2-1/2″ | 2.875 | 73.03 | 1.83 | 10 | 3050 | |
| 3″ | 3.500 | 88.90 | 1.83 | 10 | 3050 | |
| 3-1/2″ | 4.000 | 101.60 | 2.11 | 10 | 3050 | |
| 4″ | 4.500 | 114.30 | 2.11 | 10 | 3050 | |
| MATERIAL:Q195&Q235 CLASS:class 3&class 4 |
||||||
| ECONOMIC EMT CONDUIT | ||||||
| Standard | Nominal Size | Outside Diameter | Thinner wall Thickness | Length | ||
| UL 797 ANSI C 80.3 | inch | inch | mm | mm | feet | mm |
| 1/2″ | 0.706 | 17.93 | 0.85 | 10 | 3050 | |
| 3/4″ | 0.922 | 23.42 | 1.00 | 10 | 3050 | |
| 1″ | 1.163 | 29.54 | 1.10 | 10 | 3050 | |
| 1-1/4″ | 1.510 | 38.35 | 1.30 | 10 | 3050 | |
| 1-1/2″ | 1.740 | 44.20 | 1.30 | 10 | 3050 | |
| 2″ | 2.197 | 55.80 | 1.40 | 10 | 3050 | |
| MATERIAL:Q195&Q235 CLASS:class 3 |
||||||
| Applicable Tolerances: | ||||||
| Length: 10Ft (3.05m) ± ¼” (±6.35mm). | ||||||
| Outside Diameter: ½”-2” ±0.005” (±0.13mm); 2½” ±0.010” (±0.25mm); 3” ±0.015” (±0.38mm);
3½”-4” ±0.020” (±0.51mm) |
||||||
Our Competitive Advantage:
1,Safe Product.
Our conduit is safe, easy to install, with wide production range, and has shielding performance,
anti-jamming performance, fire prevention and many other good performance. It is the preferred
wire pulling material of modern building.
2,Good Raw Material.
Our conduit is processed by high-quality hot dipped galvanized coil, with zinc layer thickness more
than 120G / M²,which extends the life of the conduit. Zinc coating is well-distributed, good finished
with smooth surface, without black spots and bubbles, and has strong corrosion resistance. It is
suitable for wires protect installation of lighting and machinery equipment in wet, corrosive
harsh environment. Higher-quality products can be customized according to customer’s
requirements.
3,Good Weld Line.
Weld line is smooth, and the height of inner weld line does not exceed 0.3 mm, which keep the
conduit suitable for wire pulling and no damage to the wires.
4,Clean End of the Conduit.
The end of our conduit is cut off squarely and cleaned without any burrs and sharp edges, which
will not damage the wire.
5,Perfect Inspection Process.
Our company has a perfect product inspection process to ensure that products we offer you are qualified.
6,Withstand a variety of tests.
Our products have a perfect performance in the threading test, zinc layer testing, stamping tests, bending
tests and other physical and chemical tests.
The following picture demonstrates electrical conduit UL797 ANSI C80.3 Packing and Delivery
