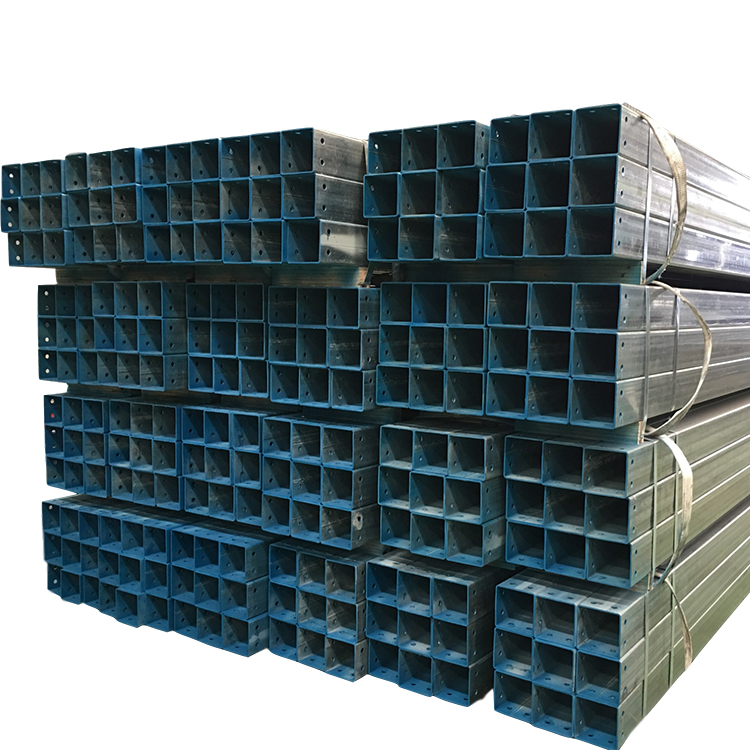

Q345B G90 65um 80um galvanized square tube for solar tracking system
TIME:2018-11-15
Brief introductionOur Hot Dipped Galvanized Square and Rectangular steel tubs are available in a variety of sizes according to customers' requirements.
Zinc-coated galvanized steel tubes can resist the attack of water, wind. Apart from preventing water and oxide corrosion, it is especilly effective in dry indoor environments.
Q345B G90 65um 80um galvanized square tube for solar tracking system
Products details:
Zinc coating: G90、65um and 80um
Material: Q345B
Radius: 2T-2.5T
Straightness: 1.5mm per meter
TWIST tolerance：+/- 0.05 degree per meter.
Length: 11.7mm, 10.5mm, 9.5mm, 9.075mm, 7.8mm, 4.5mm
Size: 100*100, 120*120，125*125 150*150，
Thickness: 2.0mm, 2.25mm, 2.5mm, 3.0,mm, 4.0mm, 4.5mm, 5.0mm
Tel: +86 18202256900 Email: steel@fwssteel.com
-
