Hot Rolled Round Steel Pipe
TIME:2016-05-16
Hot Rolled Round steel pipes are the ones which are mostly used.
They are used mainly for structural purpose, construction industries.
Our pipes meet following standard: ASTM A53, BS1387, ASTM A500, EN10219, AS/NZS 1163, JIS G3444, EN 39 and so on.
Hot Rolled Round Steel Pipe
1.Material: Q195, Q235, Q235B, Q345, Q345B, S235JR, S275JR, S355JR.
2.Specification: Outside diameter: 1/2”-26”(20mm-660.4mm).
Wall Thickness: 1.0mm-22mm
3.Standard:GB/T 6728, GB/T 3091, ASTM A36, ASTM A53, ASTM A500, BS 1387, BS EN 39, JIS G 3444.
4.Length:5.8m, 6m, 11.8m, 12 m and any length can be customized according to customer’s requirement.
5.Treatment:Plain, threaded, oiled, painted, galvanized, powder coating, punching, flatten, bending, beveling and so on.
6.Packing: PVC plastic cloth and in bundle.
7.Transportation: By container or by bulk.
8.Payment:T/T 30% advance payment, and balance against the copy of B/L within 3-5 days.
L/C 100% irrevocable at sight.
Western Union.
9.Application:Structure, fence, decoration, steel structure house, furniture, scaffolding, steel support, metallurgy, chemical, agriculture, electricity, solar power, mine, shipbuilding, piling and so on.
10.Advantages:Quickly delivery date, huge stocks and secret technology. DongPengBoDa Steel Pipe Group is founded in 2006. We have a total of 17 steel production lines, which have advanced technology and equipment and are all controlled by computer. Production process is in strict accordance with the ISO9001 quality.
Hot Rolled Round Steel Pipe | ||
---|---|---|
OD | Thickness | |
DN | INCH | |
15 | 1/2″ | 1.0-2.75 |
20 | 3/4″ | 1.0-2.5 |
25 | 1″ | 1.0-3.0 |
32 | 1-1/4″ | 1.0-3.5 |
40 | 1-1/2″ | 1.0-4.0 |
50 | 2″ | 1.0-5.0 |
65 | 2-1/2″ | 1.0-5.5 |
80 | 3″ | 1.0-6.0 |
100 | 4″ | 1.0-8.0 |
125 | 5″ | 1.5-10.0 |
150 | 6″ | 1.5-10.0 |
200 | 8″ | 1.5-12.0 |
250 | 10″ | 2.0-14.0 |
300 | 12″ | 2.0-14.0 |
350 | 14″ | 6.0-14.0 |
400 | 16″ | 6.0-14.0 |
450 | 18″ | 6.0-18.0 |
500 | 20” | 6.0-22.0 |
550 | 22” | 6.0-22.0 |
600 | 24” | 6.0-22.0 |
650 | 26” | 6.0-22.0 |
Other sizes can be customized

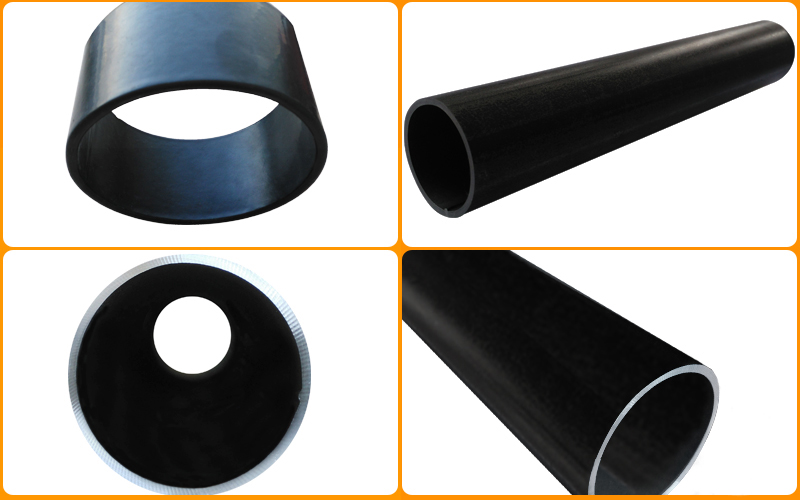

The following picture demonstrates Hot Rolled Round Steel Pipe Details

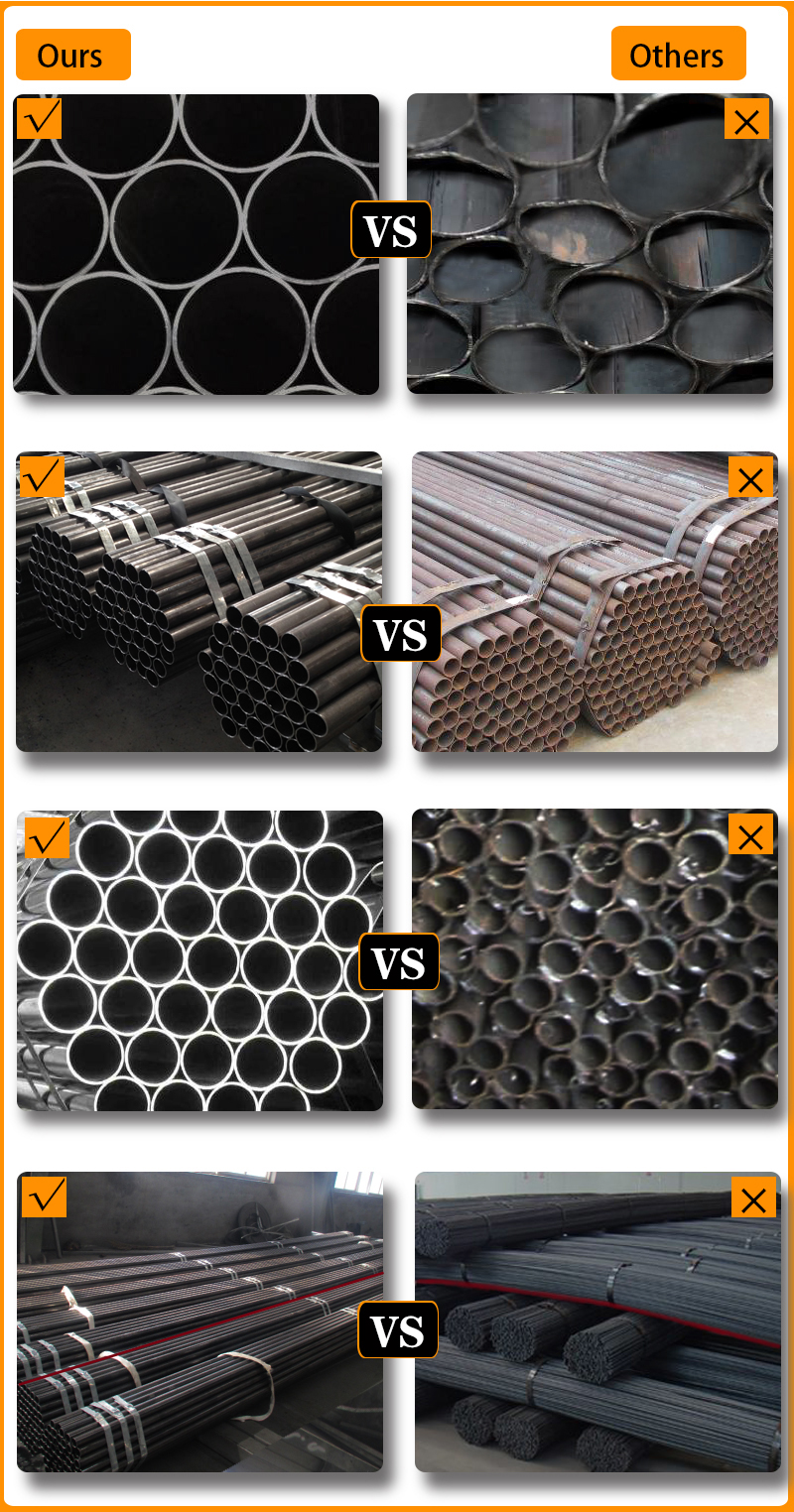

The following picture demonstrates Hot Rolled Round Steel Pipe Comparison

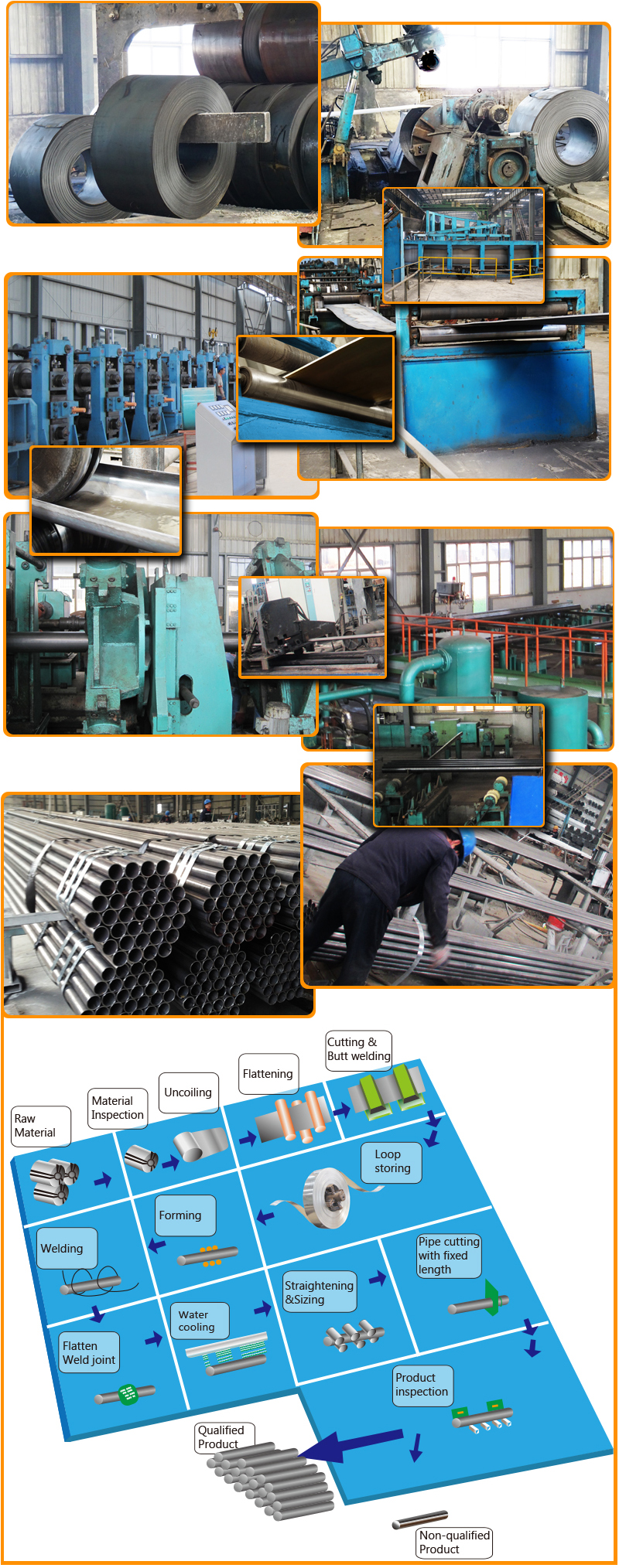

The following picture demonstrates Hot Rolled Round Steel Pipe Processing

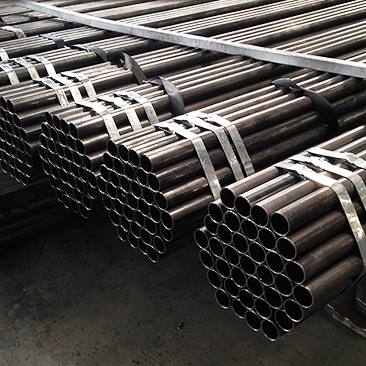

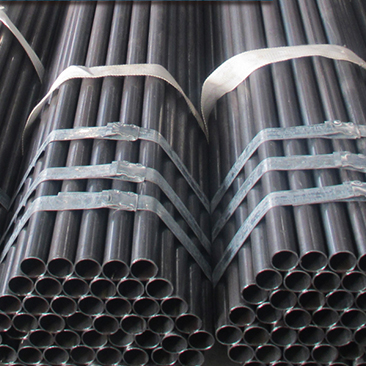

The following picture demonstrates Hot Rolled Round Steel Pipe Packing and Deilvery.
