Cold Rolled Square and Rectangular Steel Tube
TIME:2016-05-15
Brief introductionWe are offering Cold Rolled Square and Rectangular Steel Tubes that are defined by width, thickness and length.
Our tubes are well known for their features like close tolerance, good finish, dense structure, corrosion resistance, durability and strong construction.
Cold Rolled Square and Rectangular Steel Tube
| No. | Item | Description |
| 1 | Short Description | Cold rolled square steel pipes or cold rolled black annealed square tubes is made by the cold rolled sheets or coils, its name comes from the scaly, dark-colored iron oxide coating on its surface. It’s used in applications that don’t require galvanized steel. |
| 2 | Steel Grade | Q195, S195 etc. |
| 3 | Sizes | SHS10X10 to 100X100mm, RHS8X16 to 50X100mm |
| 4 | Thickness | 0.35mm to 3.0mm |
| 5 | Yiled Strenth | 195Mpa |
| 6 | Tenshile Strength | 315-430Mpa |
| 7 | Length | 5.8/6meters, or other fixed length as reqeusted |
| 8 | Surface treatment | anti-rust oil |
| 9 | Pipe Ends | pain ends. |
| 10 | Packing | Covered by plastic woven sheets, paced in bundles by steel strips, with slings both sides. |
| 11 | Transportation | by 20/40FT containers or by bulk vessels as per conditon |
| 12 | Origin | Tianjin, China |
| 13 | Mill Test Certificate | EN 10204/3.1B |
| 14 | Third party inspection | SGS/BV |
| 15 | Payment Term | TT, LC at sight, DP etc. |
| 16 | Application | furnitures, structural supports, steel frames， mechanical engineering，electricity etc. |
| Cold rolled Square and Rectangular Steel Tube(mm) | |||
|---|---|---|---|
| Size | Thickness | Size | Thickness |
| 8*16 | 0.35-1.5 | 30*40 | 0.35-2.5 |
| 10*10 | 0.35-1.5 | 38*38 | 0.35-2.5 |
| 10*20 | 0.35-1.5 | 25*75 | 0.6-2.5 |
| 15*15 | 0.35-1.5 | 40*40 | 0.6-2.5 |
| 19*19 | 0.35-2.0 | 30*50 | 0.5-2.5 |
| 15*30 | 0.35-2.0 | 45*45 | 0.6-2.5 |
| 20*30 | 0.35-2.0 | 30*60 | 0.6-2.5 |
| 10*30 | 0.35-2.0 | 48*48 | 0.6-2.5 |
| 20*20 | 0.35-2.0 | 30*70 | 0.6-2.5 |
| 12.3*25.4 | 0.35-1.5 | 50*50 | 0.6-2.5 |
| 25*25 | 0.35-2.5 | 30*90 | 0.7-2.75 |
| 28*28 | 0.35-2.5 | 60*60 | 0.8-2.75 |
| 13*38 | 0.35-1.5 | 75*75 | 0.8-2.75 |
| 19*38 | 0.35-2.5 | 38*75 | 0.7-2.5 |
| 20*40 | 0.35-2.5 | 40*50 | 0.6-2.5 |
| 30*30 | 0.35-2.5 | 40*60 | 0.6-2.5 |
| 25*38 | 0.35-2.5 | 45*75 | 0.7-3.0 |
| 25*40 | 0.35-2.5 | 40*80 | 0.7-3.0 |
| 32*32 | 0.35-2.5 | 80*80 | 0.8-3.0 |
| 25*50 | 0.35-2.5 | 50*100 | 0.8-3.0 |
| 35*35 | 0.35-2.5 | 100*100 | 1.0-3.0 |
Other sizes can be customized:
12*12, 6*10, 16*16, 27.5*27.5, 12*14, 16*32 etc.

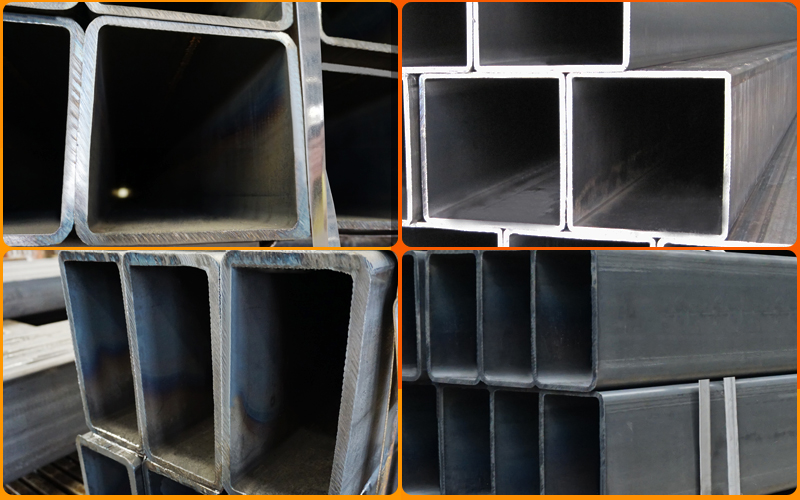

The following picture demonstrates Cold Rolled Square and Rectangular Steel Tube Details

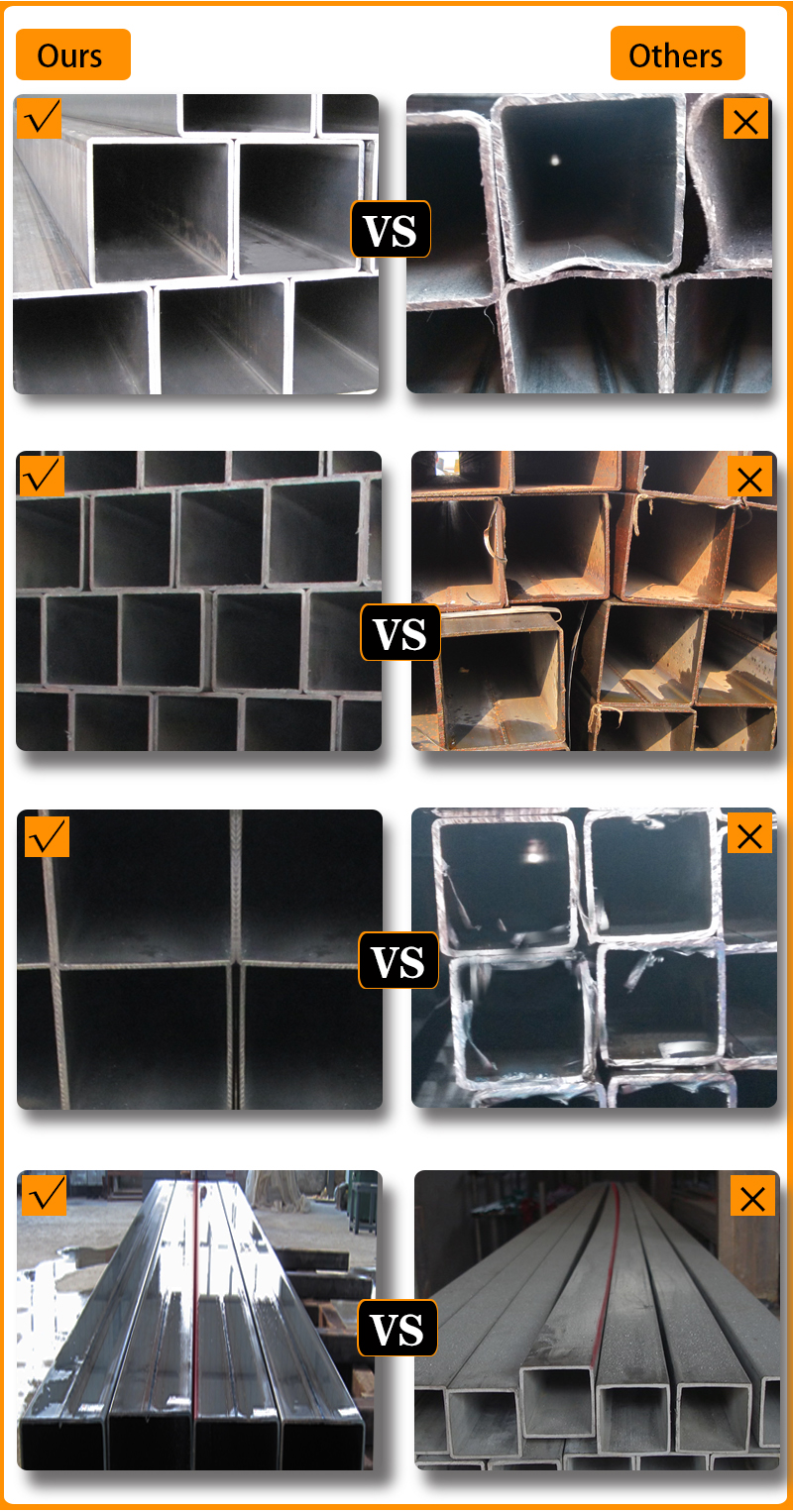

The following picture demonstrates Cold Rolled Square and Rectangular Steel Tube Comparison
